1. Pre-Installation Site Assessment

Our certified engineers conduct laser measurements of your production floor, verifying power supply (380V±5%), compressed air (6-8 bar), and foundation requirements (200mm reinforced concrete). We create a customized installation blueprint with millimeter precision.

2. Machine Positioning & Leveling

Using industrial laser alignment systems, we position your die cutter with <0.1mm/m tolerance. Our team installs vibration-dampening mounts and verifies all safety clearances before proceeding to mechanical connections.

3. Conveyor System Integration

We synchronize feed and discharge conveyors with your existing line, achieving <0.05mm registration accuracy. Our technicians install photoelectric sensors and guide systems for flawless material transfer at your production speed.

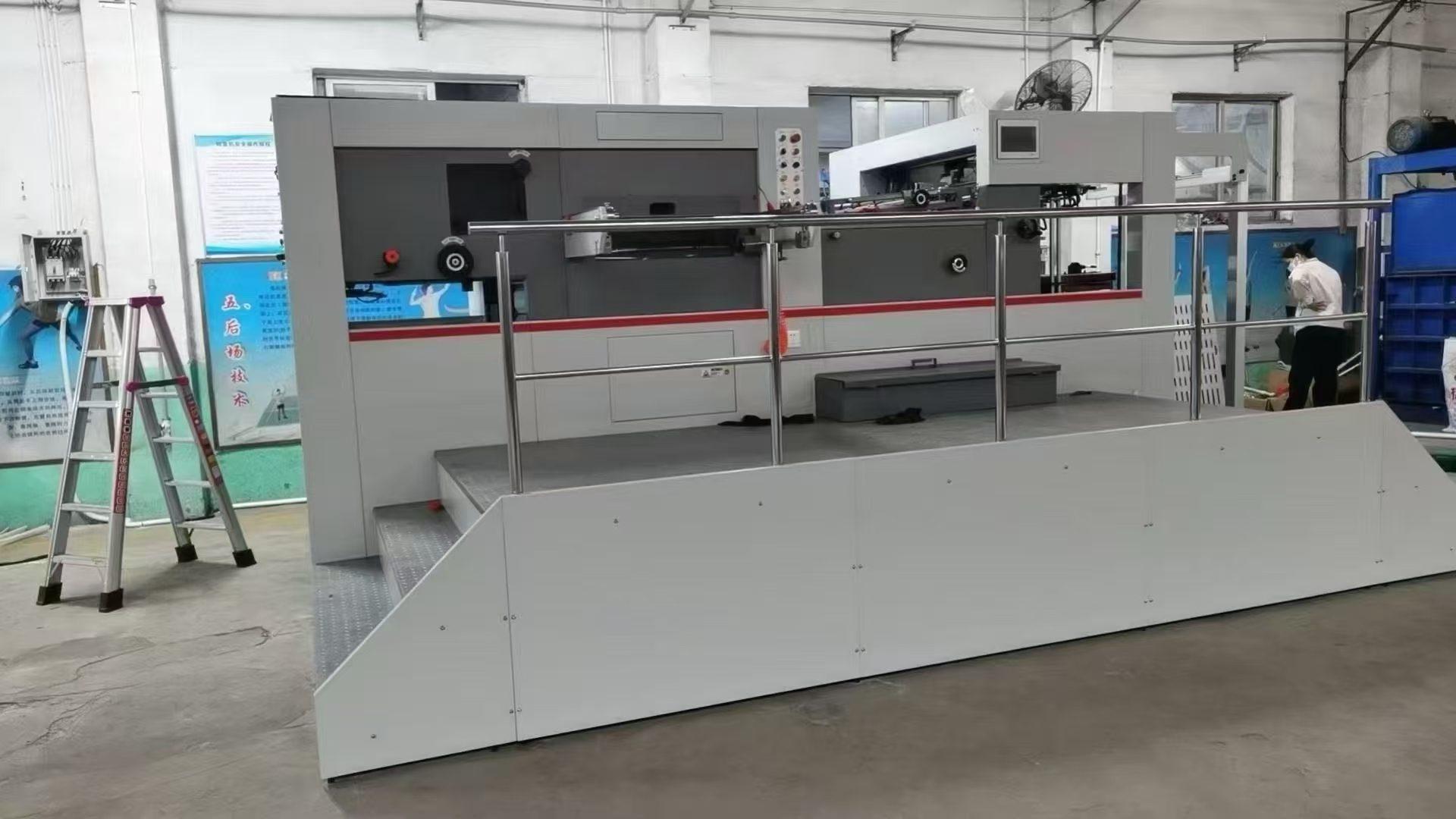

Image : Die-cutter

4. Electrical & Control System Setup

All wiring follows IEC 60204-1 safety standards. We integrate the PLC with your production network using your preferred protocol (Profinet/EtherCAT) and configure the HMI with customized dashboards for operator efficiency.

5. Pneumatic & Vacuum System Installation

The team installs FRL units with 40μm filtration and tests ejection systems at maximum cycle rates. We calibrate cutting pressure (5-20 tons) based on your material specifications and production requirements.

6. Comprehensive Testing Protocol

Our 72-hour validation process includes dry runs, slow-speed trials, and full-capacity production tests. We verify all safety systems, measure cutting accuracy (±0.1mm), and optimize waste removal efficiency before handover.

7. Training & Ongoing Support

Certified technicians provide 16 hours of hands-on training covering daily maintenance, quick tool changeovers (<15 min), and troubleshooting. Our remote monitoring system provides real-time performance data and predictive maintenance alerts.
