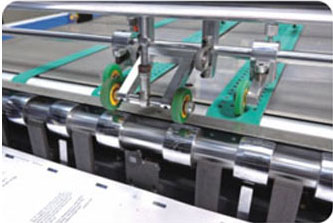

Feeder Powerful 4 suction 4 feed feeder making paper feeding more |

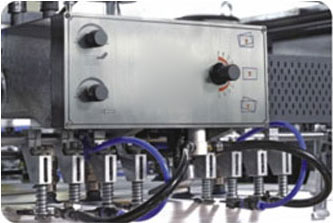

Electromagnetic heating system Faster temperature rising, lower |

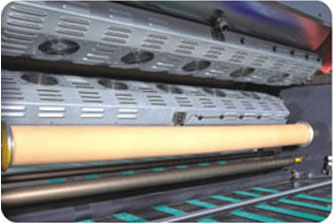

Stacker buffering device Collecting paper more effectively especially for various thickness. |

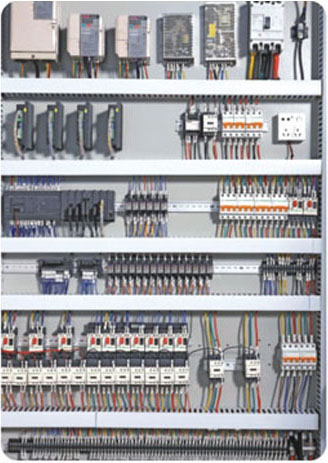

Electric Box Imported electronic components ensure stabler with less repairs. Circuit adopt humanity design with PLC |
Features |
01 Easy operation & Intelligent: Adopt same principle of printing press - One button starting, Auto-positioning.
02 Energy-saving: Adoptelectromagnetic heating, less wastage of heat energy, high utilization.
03 High Safety Coefficient:Streamline design on machine covers which is similar to printing press. Safer for operation.
04 High Speed: Highest speed can achieve 120m/min.

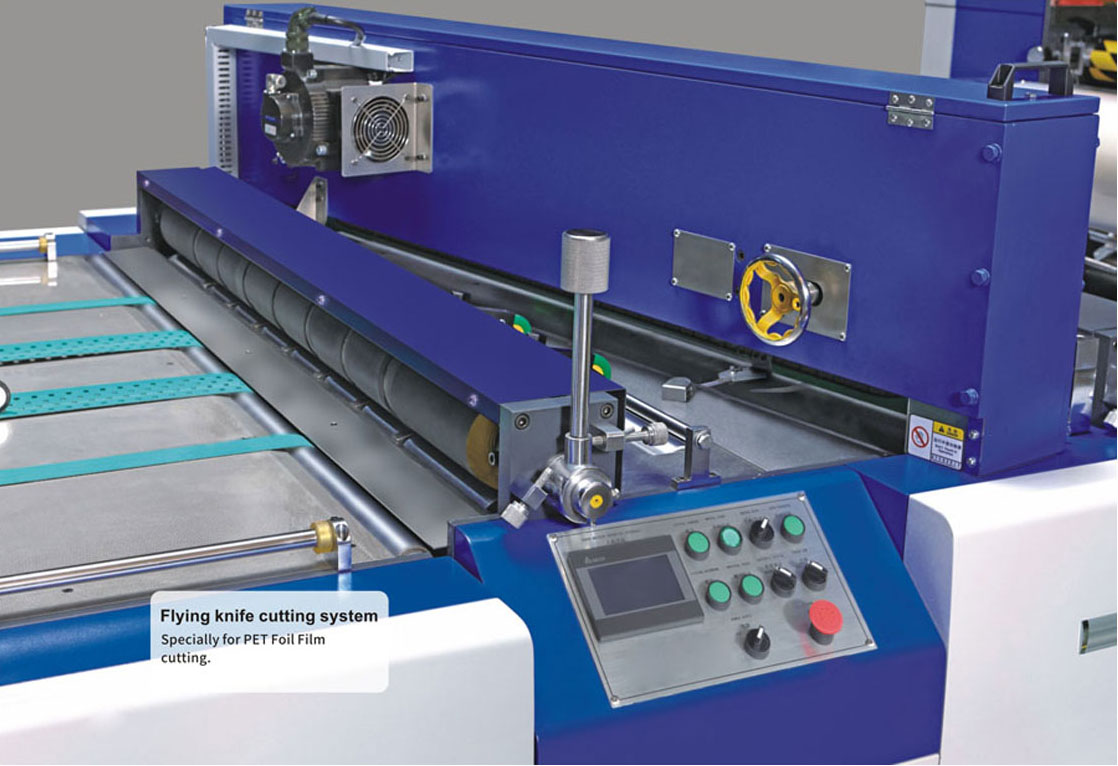

05 Flying knife Cutting:Suitable for various film materials (OPP, PET,PVC), can cut it quickly and stably.
06 Electric Components: Adopt international famous brand (like KEYENCE, SIMENS, Schneider etc.) to make sure stable working
Technical parameter |
Model | TL 110 | TL 130 | TL 145 |
Specifications | 1100mm*1450mm | 1300mm*1680mm | 1450mm*1680mm |
Speed | 10-80m/min | ||
Paper GSM | 100-500g/㎡ | ||
Max.Size | 1100mm*1450mm | 1300mm*1680mm | 1450mm*1680mm |
Min.Size | 300mm*300mm | ||
Production Power | Approx 25-35kw | Approx 30-40kw | Approx 30-40kw |
Total Power | Approx 55kw | Approx 60kw | Approx 60kw |
Machine Size | 13400*2100*3500(mm) | 14500*2300*3500(mm) | 14500*2450*3500(mm) |
Machine Weight | Approx 12800kg | Approx 15000kg | Approx 16500kg |
