Controller model:

HZ8

Pump model:

HB9

Head :

1-8pcs;1-16pcs;1-24pcs

Input power:

AC220V 50-60Hz

Air pressure request:

6-8 bar

Adhesive viscosity:

700-5000mPas

Power:

680W

N.G:

100KG

Dimension:

1932W*666L*1800H

Features

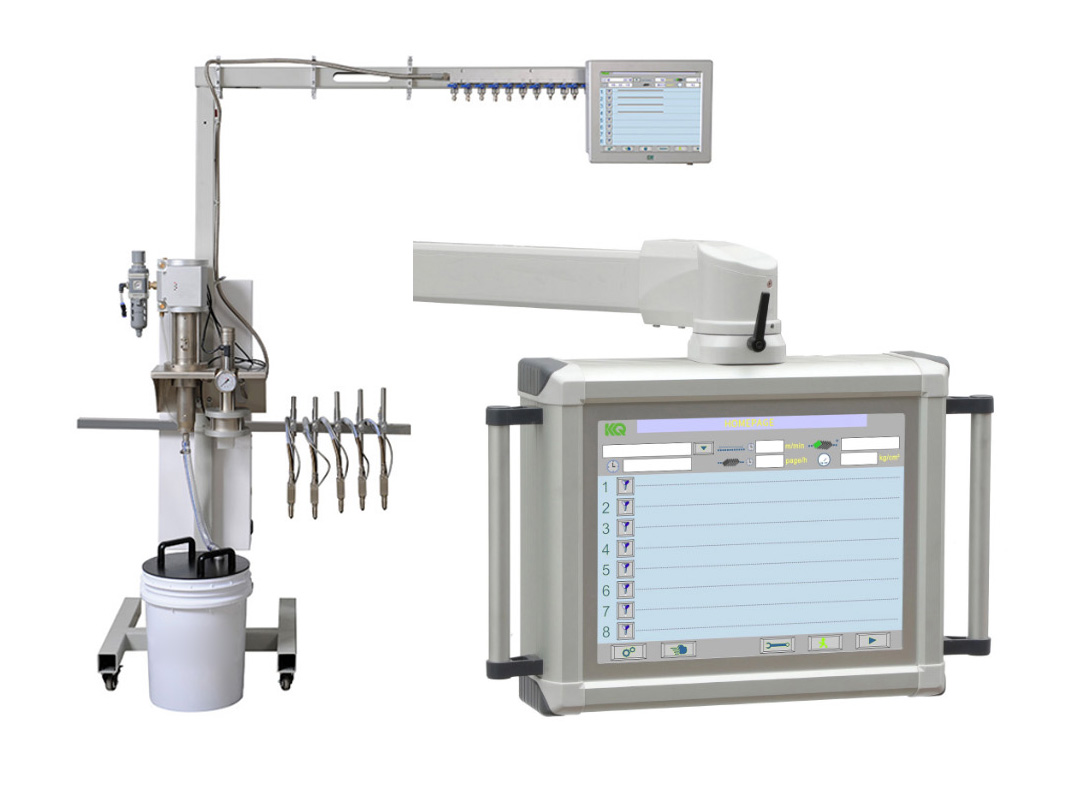

Modular system control, the control and monitoring functions can be operated through the touch screen to achieve comprehensive visual operation through the central touch screen, ensure flexible and intuitive, and provide maximum reliability and quality for high-efficiency processing equipment and production.

KQ cold glue gun, with the characteristics of ultra fast, ware-free electromagnetic and non-contact, spray glue line and dot accurately, even the smallest application.  The glue can be sprayed on specific location of the carton and box products with the accuracy of millimeters at any speed, which minimizes the cleaning and installation time during production and reduces waste.

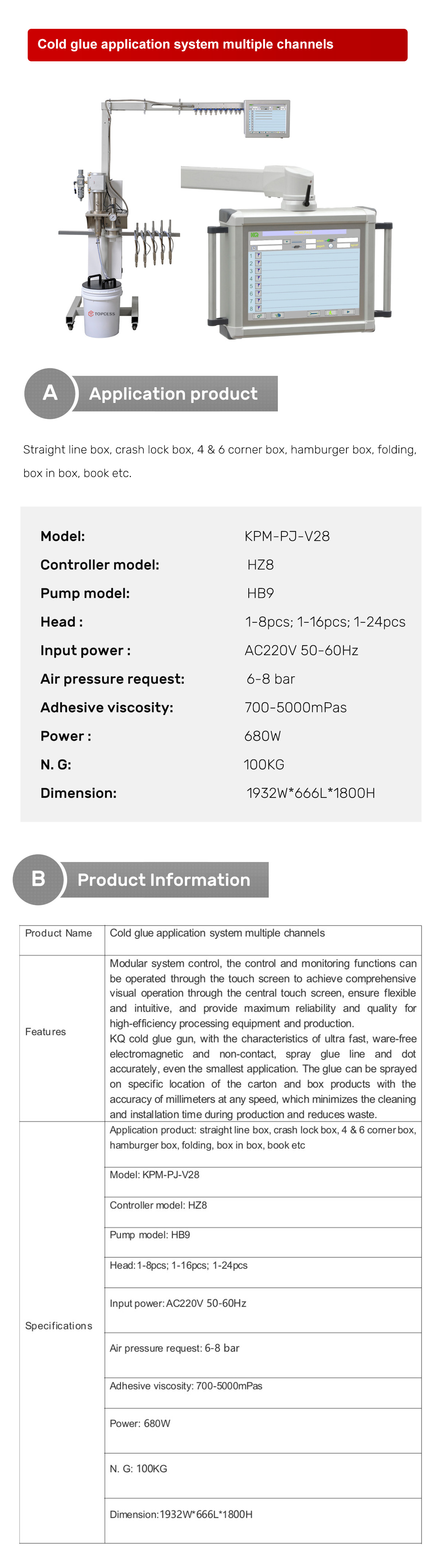

Specifications

Application product: straight line box, crash lock box, 4& 6 corner box, hamburger box, folding, box in box, book etc

Model:KPM-PJ-V28

Controller model: HZ8

Pump model:HB9

Head:1-8pcs; 1-16pcs;1-24pcs

Input power:AC220V 50-60Hz

Air pressure request:6-8bar

Adhesive viscosity:700-5000mPas

Power:680W

N.G:100KG

Dimension:1932W*666L*1800H
