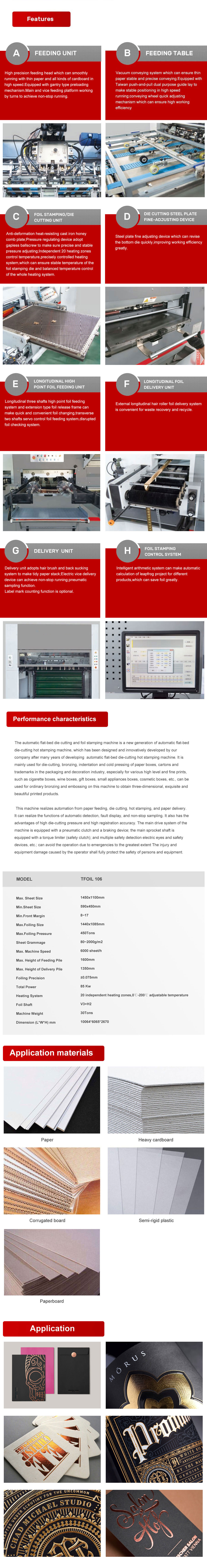

Features |
01/FEEDING UNIT
 High precision feeding head which can smoothly running with thin paper and all kinds of cardboard in high speed.Equipped with gantry type preloading mechanism.Main and vice feeding platform working by turns to achieve non-stop running. |

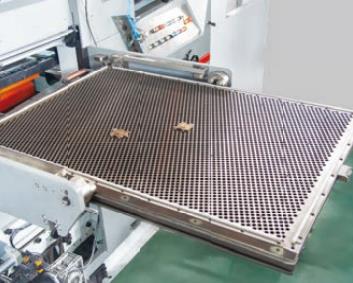

02/CONVEYING UNIT
Vacuum conveying system which can ensure thin paper stable and precise conveying.Equipped with Taiwan push-and-pull dual purpose guide lay to make stable positioning in high speed running;conveying wheel quick adjusting mechanism which can ensure high working efficiency. |
03/FOIL STAMPING/DIE CUTTING UNIT
Anti-deformation heat-resisting cast iron honey comb plate;Pressure regulating device adopt gapless ballscrew to make sure precise and stable pressure adjusting;Independent 20 heating zones control temperature,precisely controlled heating system,which can ensure stable temperature of the foil stamping die and balanced temperature control of the whole heating system. |

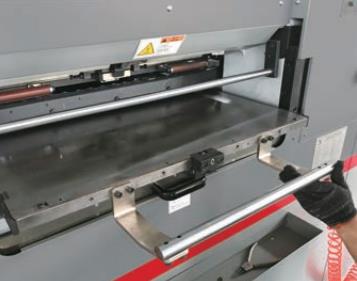

04/DIE CUTTING STEEL PLATE FINE-ADJUSTING DEVICE
 Steel plate fine adjusting device which can revise the bottom die quickly,improving working efficiency greatly. |
05/LONGITUDINAL HIGH POINT FOIL FEEDING UNIT
 Longitudinal three shafts high point foil feeding system and extension type foil release frame can make quick and convenient foil changing,transverse two shafts servo control foil feeding system,disrupted foil checking system. |
06/LONGITUDINAL FOIL DELIVERY UNIT
External longitudinal hair roller foil delivery system is convenient for waste recovery and recycle. |

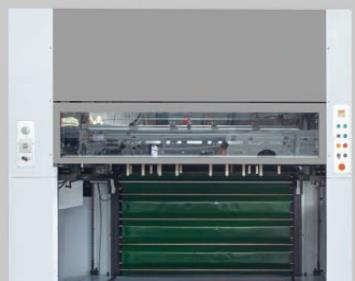

07/DELIVERY UNIT
Delivery unit adopts hair brush and back sucking system to make tidy paper stack; Electric vice delivery device can achieve non-stop running;pneumatic sampling function. Label mark counting function is optional. |
08/FOIL STAMPING CONTROL SYSTEM
 Intelligent arithmetic system can make automatic calculation of leapfrog project for different products which can save foil greatly. |
Perfomance Characteristics |
TFoil 145 hot foil stamper is a new generation of automatic flatbed diecutting and hot stamping machine, which has been designed and innovatively developed. It is mainly used for diecutting, embossing, hot foiling on paper boxes, cartons and trademarks in the packaging and decoration industry. Especially for various high level and fine prints, such as cigarette boxes, wine boxes, gift boxes, small appliances boxes, cosmetic boxes. It can be used for ordinary bronzing and embossing on this machine to obtain three-dimensional, exquisite and beautiful printed products. This machine is fully automation from paper feeding, die cutting, hot stamping, and paper delivery. HMI can operate functions of automatic detection and fault display. It also has the advantages of high die-cutting pressure and high registration accuracy. The main drive system of the machine is equipped with a pneumatic clutch and a braking device; the main sprocket shaft is equipped with a torque limiter and multiple safety detection by electric sensors and safety devices.
The automatic flat-bed die cutting and foil stamping machine is a new generation of automatic flat-bed die-cutting hot stamping machine, which has been designed and innovatively developed by our company after many years of developing automatic flat-bed die-cutting hot stamping machine. It is mainly used for die-cutting, bronzing, indentation and cold pressing of paper boxes, cartons and trademarks in the packaging and decoration industry, especially for various high level and fine prints, such as cigarette boxes, wine boxes, gift boxes, small appliances boxes, cosmetic boxes, etc., can be used for ordinary bronzing and embossing on this machine to obtain three-dimensional, exquisite and beautiful printed products. This machine realizes automation from paper feeding, die cutting, hot stamping, and paper delivery. It can realize the functions of automatic detection, fault display, and non-stop sampling. It also has the advantages of high die-cutting pressure and high registration accuracy. The main drive system of the machine is equipped with a pneumatic clutch and a braking device; the main sprocket shaft is equipped with a torque limiter (safety clutch); and multiple safety detection electric eyes and safety devices.
Specification |
Model | TFoil 145 |
Max. Sheet Size | 1450x1100mm |
Min. Sheet Size | 590x450mm |
Min. Front Margin | 8~17 |
Max. Foiling Size | 1440x1085mm |
Max. Foiling Pressure | 450Tons |
Sheet Grammage | 80 ~ 2000g/m2 |
Max. Machine Speed | 6000 sheet/h |
Max. Height of Feeding Pile | 1600mm |
Max. Height of Delivery Pile | 1350mm |
Foiling Precision | ±0.075mm |
Total Power | 85 Kw |
Heating System | 20 independent heating zones, 0℃-200 ℃ adjustable temperature |
Foil Shaft | V3+H2 |
Machine Weight | 30Tons |
Dimension (L*W*H) mm | 10064*6065*2670 |
