Features

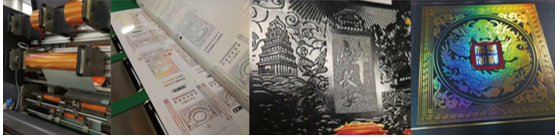

The 3D mold digital hot stamping technology is a new technology with independent intellectual property rights, which is a non-bronzing plate
of the hot stamping technology. lt absorbs the advantages of traditional cold stamping and hot stamping not only it can realize a large area
fine texture bronzing that hot stamping can not complete, but also it can complete raised relief visual sense and touch stereoscopic experience
that the cold stamping can not complicated. In addition,it makes the hot stamping process become more simple and efficient.
No bronzing plate, it saves the time to make a sample.
No bronzing plate, it saves the time to change the plate.
Nobronzing plate,it eliminates the time of adjusting the pressure.
Specification
Web direction | Left to Right |
Max web width | 370mm |
Max hot stamping width | 370mm |
Max inkjet speed | 50m/min |
Maximum speed (digital transfer foil) | 35m/min |
Material thickness | 0.02-0.35mm (30g~350g/m2) |
Maximum diameter of winding & unwinding | MaxΦ650mm |
Foil stamping way | 1 Set (cold foil) |
Maximum winding & unwinding diameter of digital foil | MaxΦ400mm |
Paper core for winding & unwinding foil | Φ76.2mm internal diameter |
Material thickness | 0.02-0.35mm (30g~350g/m2) |
Maximum diameter of winding & unwinding | MaxΦ650mm |
Foil stamping way | 1 Set (cold foil) |
Maximum winding & unwinding diameter of digital foil | MaxΦ400mm |
Paper core for winding & unwinding foil | Φ76.2mm internal diameter |
Dp-324WD digital jet printing system (double arrangement 6+6, 12 Ricoh heads, with compensation printing function), digital jet printing width 324mm | 1 set |
Number of printing platform stations | 1 set |
Application
