Employ highly reliable feeder, which is able to output thin or thick paper smoothly.

       Attach a sensitive detector which can tell double paper or paper lacking, and shut down machine immediately when abnormal

       paper output is seen.

       Swinging-downward front lay or rotating side lay is used for paper positioning, which is accurate and reliable.

       The application of downward swaying double-diameter roller transmission structure can make paper delivered smoothly and fast.

       The application of fast-clip device in coating roller can lead to a convenient loading.Impression cylinder and gravure cylinder are

       pressed and clutched in pneumatic methods, users can choose manually or automatically move in or move out the trunk.

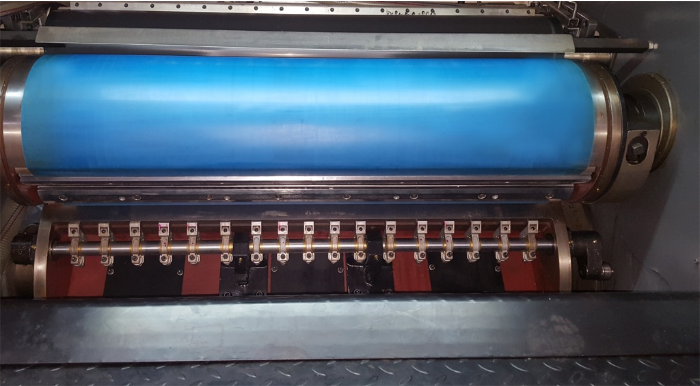

       This machine uses ceramic netlike roller to deliver oil, which can lead to a more delicate coating; oil is started delivering in the

       front of gravure cylinder which created a large and convenient loading space.

  UV drier uses three sets of UV mercury light, which is able to solidify UV light oil quickly. Switch of Full light or half light is available.

  UV ray leaking-prevention device is equipped. Light is off automatically if transmission grid is cut off, safeguarding people.

  Auto temperature controller is installed internally. Cooling and air exhausting equipment is available if the electronic is tripping.

  UV light box rises and falls automatically in case of fire.

  Vacuum-based absorption paper delivery is through the entire process, which guarantee stable paper.

 The whole vacuum adsorption paper feeding to ensure the stability of paper.

     Pneumatic venting system with convenient regulation, enabling smooth and orderly paper collection.

     Cooling fan is available, while AC cooler is also alternative.

     Humanized counting alarm device, which has accurate counting and can set alarming paper numbers optionally.

Performance Characteristics

Max Paper Size

1060x750mm
